Thickness 1 . 0 - 2 . 0mm Cutter Cr12MoV C Channel Roll Forming Machine
Parameter
| | Item | Parameters |
| 1 | Type | Top Hat Purlin |
| 2 | Thickness | 1.0-2.0mm |
| 3 | Forming Speed | 15-20m/min |
| 4 | Forming station | 14 steps |
| 5 | Main motor | 5.5KW |
| 6 | Hydraulic Power | 3 KW |
| 7 | Roller | GCr15 |
| 8 | Weight | About 7 Tons |
Main features
The advantages of top hap purlin machine are as follows:
1.Assembly process meets export standards, body frame and sideboard are spray-painted,
other parts are finished through baking/chroming/galvanizing/blackening respectively, then unified assembly. After surface treatment,
not only extend lifetime, but also improve overall appearance.
2.Manufactured from 45# steel, CNC lathes, Heat Treatment, hard Chrome Coated, surface with mirror treatment (more wearable and rust-free)
3.Rolling shafts are with precision machined. Solid core, 75mm, the material thickness increased to 0.8mm
4.Hydraulic cutting device, make the cutting smooth and neat.
5.Easy operation, low maintenance cost
Decoiler
Brand: BMS Original: China
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
Main Machine
Brand: BMS Original: China

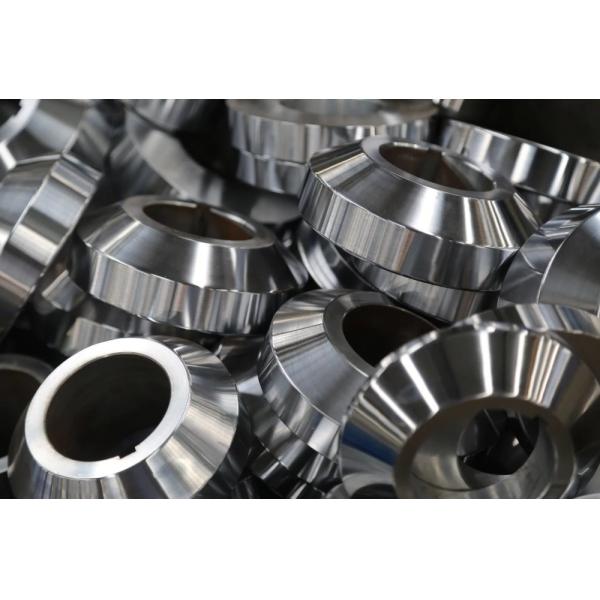

Rollers manufactured from high quality GCr15, CNC lathes, Heat Treatment.
Suitable for material with thickness1.0-2.0 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 16 rollers to form
Main motor=5.5KW , Frequency speed control. Forming speed approx.15-20m/min
Pre-cutting, stop to cutting, use the same hydraulic motor drive
hydraulic motor: 3KW, Hydraulic pressure range: 0-16Mpa
Cutting tool material: Cr12Mov, Heat treatment
PLC Control System
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤±2mm
Control Voltage24V
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
After-sale service
1. The warranty is one year after the client receives the machine Within one year, we will courier the replacement parts to the client free of charg.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade
1. Minimum order quantity (MoQ): 1
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
